The Use of AI in Kinematics: MSR 2026 Tutorial

Overview

This MSR 2026 tutorial presents a validation-centered workflow for using large language models and coding agents in kinematics research and education. The core message is practical: AI is most useful when it is treated as a laboratory assistant that receives source material, constraints, tools, and tests. The session connects conversational planning, IDE-based code generation, computer algebra systems, and terminal-driven validation into a repeatable workflow for developing kinematics solvers and teaching applications.

The tutorial is based on two accepted ASME IDETC/CIE 2026 papers with J. Michael McCarthy, plus companion repositories and examples from classical mechanism theory. It covers simple planar linkages, spherical and spatial dyad synthesis, Stewart–Gough platform forward kinematics, general 6R inverse kinematics, and AI-assisted closed-form IK solvers for common industrial robot architectures.

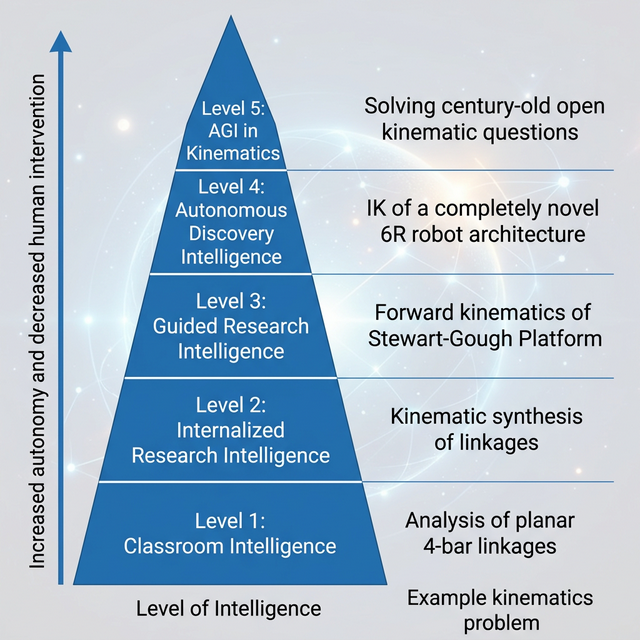

The two foundational paper repositories are IK_6R_RR_1993 for the AGI-in-kinematics benchmark framing and general 6R IK work, and gdl_llm_reproduction for the practical LLM-assisted kinematics examples.

Presentation Video

Tutorial Structure

The 45-minute tutorial and 15-minute Q/A were organized around four modules, moving from motivation and tool setup to concrete kinematics case studies and responsible educational use.

Session Modules
Module	Focus	Takeaway
1. Introduction	Why kinematics is difficult for AI: geometry, branches, singularities, polynomial elimination, and numerical stability.	AI output is useful only when paired with independent checks.
2. Environment and agents	ChatGPT, VS Code, Codex, Claude Code, Python, SciPy, Mathematica, terminal runs, and browser demos.	Use chat for framing and agent mode for files, tests, and iteration.
3. Kinematics examples	Four-bar analysis, RR/PR dyads, spatial SS synthesis, Stewart–Gough FK, general 6R IK, and industrial 6R IK architectures.	The hard part is specifying the stable mathematical route and the evidence that proves it worked.
4. Future and education	Domain skills, validation harnesses, responsible disclosure, and AI-assisted teaching tools.	AI should compress implementation loops without replacing derivation, debugging, and mathematical judgment.

Hands-on Workflow

The live workflow asks participants to move from an informal question to a structured agent prompt, then to executable code and a validation report. Before asking the agent to build a solver or app, the prompt should define the source material, notation, exact task, branch requirements, deliverables, and pass/fail evidence. In the kinematics examples, that evidence includes loop residuals, known solution counts, planted roots, FK–IK–FK checks, and stress tests around singular or near-degenerate cases.

Case Studies and Validation Evidence
Case Study	Agent Contribution	Required Evidence
Planar four-bar analysis	Translate textbook equations into a branch-aware solver and visualizer.	Loop closure, link-length residuals, and two valid assembly branches where expected.
Planar and spherical dyad synthesis	Generate symbolic/numeric workflows for RR, PR, and spherical RR synthesis examples.	Constraint residuals, rank checks, real-solution filtering, and axis-aware validation.
Spatial SS synthesis and Stewart–Gough FK	Implement published algebraic pipelines and CAS-driven elimination steps.	Known solution counts, planted roots, polynomial degree checks, and residual reports.

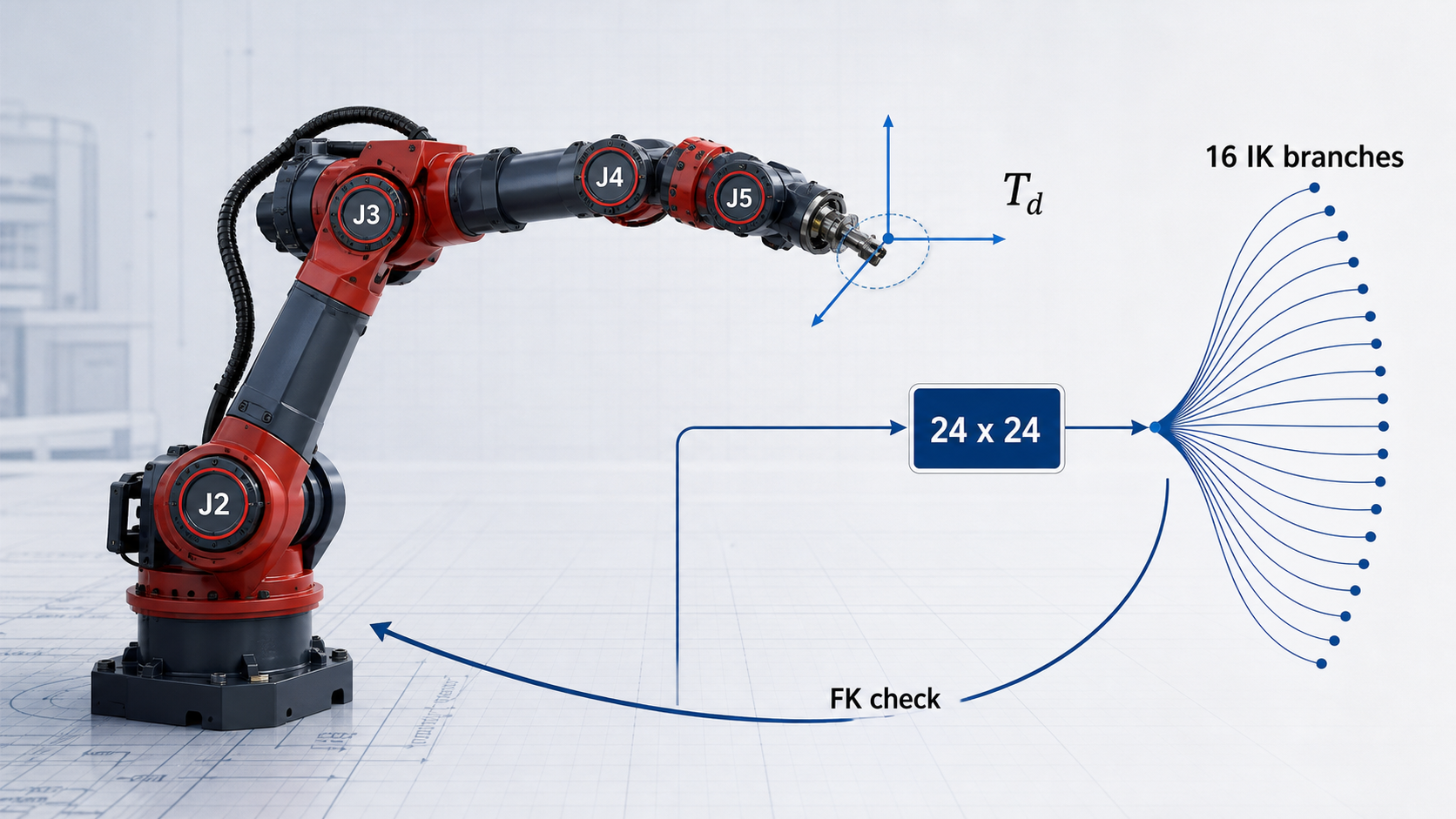

General 6R inverse kinematics	Code the Raghavan–Roth style dialytic-elimination route and numerical root solve.	Sixteen IK branches where applicable and FK–IK–FK pose recovery.
Industrial 6R spherical-wrist and parallel-joint IK	Generate solver code, prompts, tests, and benchmark reports for common architectures.	Validation on industrial robot catalogs and randomized configurations.

Resources

Tutorial slide deck: AI_in_Kinematics_Tutorial_MSR_Irvine_2026.pdf
Hands-on outline: MSR_2026_Tutorial_Hands_On_Outline.pdf
Video presentation: https://youtu.be/oIdzRphaMkc
Paper 1 GitHub repository: haijunsu-osu/IK_6R_RR_1993
Paper 2 GitHub repository: haijunsu-osu/gdl_llm_reproduction
Spatial SS dyad synthesis repository: haijunsu-osu/llm_ss_synthesis_liao_2001
Stewart–Gough FK repository: haijunsu-osu/llm_FK_Stewart_Husty_1996
AI-assisted analytical IK project page: LLM Assisted IK Solvers for Robot Manipulators
